Gravity flow pallet racking systems

The pallet flow racks include first in first out (FIFO) and last in first out (LIFO) inventory management options. The goal of the first-in, first-out, and last-in-first-out pallet flow racks is to ensure the efficient flow of products while maximizing the use of space. Compared with the static storage racking system, it provides higher selectivity and saves time, because there is no need to manually advance the products to be picked.

Send email to us Download as PDF

Product Detail

Product Tags

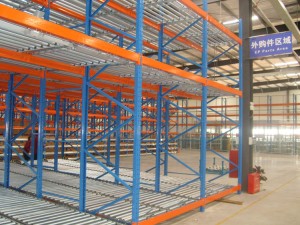

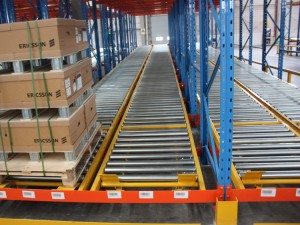

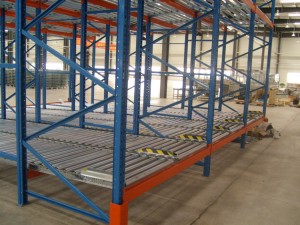

The gravity flow pallet racking systems are a FIFO racking option that can provide excellent volume utilization for pallet storage applications. It consists of uprights, beams, and inclined channels of rollers or wheels, allowing pallets to slide from the rear loading channel to the front picking channel. When the current pallet is unloaded, the next pallet automatically slides into the picking position.

The gravity flow pallet racking systems are also called the carton live storage rack. The gravity flow pallet racking system is to put the goods on the roller track, and use the mode of storing on one side and taking the goods on the other side. Slide to one side under the action of gravity, so that the first in first out mode operation is realized. The carton live storage rack has a high storage rate, suitable for a large amount of short-term inventory and picking, and the space utilization rate is as high as 50%.

The gravity flow pallet racking systems are suitable for use as supply racks for finishing processes and as storage and picking racks. They can be used in a variety of situations and enable compact, clearly organized storage of goods. Reduced travel distances increase system efficiency and working time are reduced.

The gravity flow pallet racking system is characterized by a light first-in first-out rack, which is usually used in conjunction with standard turnover boxes or cartons. The rack can be used independently or in combination with multiple units. It is widely used in warehouses, factory assembly workshops and various distribution centers. This rack structure is simple, compact, beautiful, no energy consumption, no noise, and its operating efficiency can be increased by 50% compared with other racks.

The features of gravity flow pallet racking system

1.First in first out system, which provides automatic stock rotation.

2.Dense form of storage, will be more economical.

3.One dedicated loading face and one retrieval face-speed of operation in movement of goods around warehouse.

4.Loading capacity ranges from 500-3000kg per level.

5.Bring high storage density.

6.Customized sizes are available.

Advantages of gravity flow pallet racking system

Ideal for food and perishable items

Reduces forklift truck usage

Provides first in/ first out stock rotation

Fast operation

Less lighting required

Eliminates the need for urgent pick face replenishment

The storage rack occupies a very important position in logistics and warehouses. With the rapid development of modern industry, the material flow has increased significantly. In order to realize the modern management of the warehouse and improve the functions of the warehouse, not only a large number of shelves are required, but also multiple functions are required. And can achieve flexibility and automation requirements.

If you have any inquiry related to racks and shelves, please feel free to contact with Spieth Team, we are a professional manufacturer of various storage racks and shelves in China.
