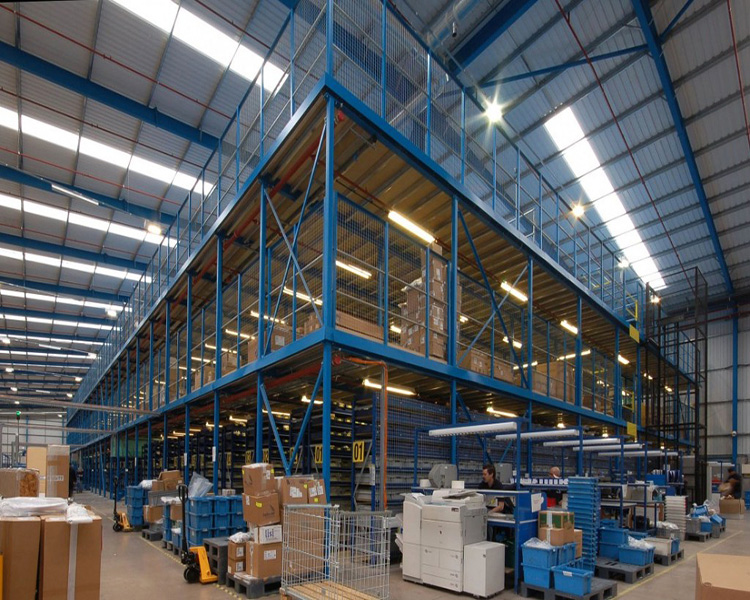

Designing a steel structural mezzanine within an existing warehouse is a systematic project that requires comprehensive consideration of structural safety, codes, functionality, and usage efficiency.
The following is a guide outlining design steps, considerations, and guidelines, hoping to provide you with a clear line of thinking.
Phase One: Preliminary Research & Feasibility Analysis
This is the most critical step. Before drawing any plans, it is essential to thoroughly understand the current situation and requirements.
1. Confirm Core Objectives & Requirements
What is its purpose? Is it for offices, storing light goods, equipment placement, or high-traffic personnel areas? The intended use directly impacts load calculations and design codes.
How much area is needed? This determines the scope of the mezzanine and the degree of impact on the original structure.
What is the budget? The budget often determines material selection (e.g., using H-beams or box girders for main beams) and the complexity of the construction process.
2. Thoroughly Survey Existing Site Conditions
Original Architectural Drawings: Try to find the warehouse’s original architectural and structural drawings. This is the most important basis for understanding the load-bearing capacity and structural form of the existing foundation, columns, beams, and slabs.
Warehouse Clear Height: Precisely measure the height from the floor to the bottom chord of the roof truss or the lowest obstruction.
Mezzanine Height: Determine the required clear height below the mezzanine (e.g., a truck passage requires at least 4.5 meters) and the usable clear height above the mezzanine (at least 2.8 meters for offices, can be slightly lower for storage).
Formula: Warehouse Clear Height = Clear Height Below Mezzanine + Mezzanine Structural Height (Main Beam + Secondary Beam + Floor Slab Thickness) + Clear Height Above Mezzanine
Existing Structure & Foundation:
Column Grid Dimensions: Measure the spacing of the existing columns (bay x span), a key parameter for determining your main beam span.
Column Size & Material: Confirm whether they are concrete or steel columns, their cross-sectional dimensions, and their condition.
Foundation Information: Understand the type and bearing capacity of the original foundation. The load from the new mezzanine will ultimately transfer to the original foundation, which must be assessed for its ability to withstand it.
Other Facilities: Note the locations of existing fire sprinklers, lighting fixtures, ventilation ducts, cable trays, etc. Space needs to be reserved for them, or rerouting planned during design.
3. Understand Local Regulations & Approvals
Building Codes: Must comply with the “Load Code for the Design of Building Structures” (GB 50009), “Code for Design of Steel Structures” (GB 50017), “Code for Seismic Design of Buildings” (GB 50011), etc.
Fire Codes: This is paramount. Mezzanines often alter original fire compartments and sprinkler layouts. The following must be satisfied:
Egress Routes: Must provide sufficiently wide and numerous emergency stairs (usually at least two), leading directly to a safe exterior area.
Sprinklers & Smoke Detectors: The mezzanine area requires independent fire sprinkler heads and smoke detectors, interconnected with the existing fire system.
Fireproofing: All steel components must be coated with sufficient fire-resistant coating to meet the fire resistance rating required by code.
Submission & Approval: Such projects usually require submission/filing with the local housing and construction department and obtaining construction permits. It is strongly recommended to consult qualified design institutes and construction units; they are familiar with the process and can ensure the design is legal and compliant.
Phase Two: Key Points of Structural Design
1. Load Calculation
Dead Load (Permanent Load): Structure self-weight (steel + floor slab), weight of fixed equipment, partition walls, etc.
Live Load (Variable Load): This is a core design parameter.
Office Use: Typically ≥ 2.5 kN/m²
Storage Use: Depending on stored item density, can range from 3.0 kN/m² to 10.0 kN/m² or even higher.
Aisles & Dense Areas: Need to adopt higher values.
Always include a margin to accommodate future changes in use.
2. Structural System Selection
Option 1: Independently Supported (Preferred & Safest)
Method: New steel columns land directly on the ground, transferring loads to the foundation via independent footings. The new structure is completely separate from the original warehouse structure or has minimal connection.
Advantages: Does not affect the safety of the original main structure, clear force path, simple design.
Disadvantages: May occupy ground space, affecting vehicle or pedestrian traffic on the ground floor.
Option 2: Connected to Existing Structure
Method: Main beams are pin-connected or rigidly connected to existing columns, or corbels are set on existing columns to support the main beams.
Advantages: Saves space, unobstructed floor.
Disadvantages: Requires precise checking of the original structure, including the axial compression ratio of existing columns, and the shear and bending capacity of beams. Requires rigorous calculation by a professional structural engineer, higher risk and cost.
Prohibition: It is absolutely forbidden to directly rest main beams on existing brick walls or non-load-bearing components.
3. Main Component Design
Main Beams: Carry all loads from secondary beams; span is determined by the column grid. Typically use H-beams; cross-sectional size determined by span and load. The section can be very large for long spans (>10m) or heavy loads.
Secondary Beams: Rest on main beams, directly supporting the floor deck. Spacing is usually 1.5m-3m, using H-beams or I-beams.
Columns: Use H-beams or square steel tubes, section designed based on axial pressure.
Floor System:
Profiled Steel Sheet + Cast-in-Place Concrete Composite Slab: The most common method. The profiled steel sheet acts as permanent formwork and tensile reinforcement, with concrete poured on top.
Excellent integrity, high stiffness, good fire performance.
Precast Concrete Slabs: Fast construction, but slightly poorer integrity, requires good joint treatment.
Steel Plate: Used in situations requiring high cleanliness or with small loads, but requires anti-slip treatment (e.g., checkered plate), poor fire and sound insulation performance.
4. Connections, Corrosion Protection, & Fireproofing
Connections: Primarily use high-strength bolted connections, supplemented by some welding. Nodes must be reliable.
Corrosion Protection: All steel components require derusting and application of anti-rust primer and topcoat paint.
Fireproofing: Apply ultra-thin, thin, or thick fire-resistant coatings according to the fire resistance duration required by fire codes (e.g., 1.5 hours).
Phase Three: Design Process Summary
Establish Requirements & Survey Site: Define functionality, measure all key data.
Feasibility Assessment: Judge whether clear height, foundation, and loads meet requirements.
Commission Professional Design: Hire a qualified structural engineer or design institute. Provide all site data and requirements.
Scheme Design: Work with the engineer to determine the structural system, column locations, stair positions, etc.
Structural Calculation & Drawing Production: The engineer performs precise structural calculations and produces construction drawings (structural, architectural, fire protection).
Submission & Approval: Submit drawings to relevant departments for approval.
Tendering & Construction: Select an experienced steel structure construction contractor.
Inspection: Upon completion, conduct quality, fire protection, and final inspections.
Core Advice & Common Misconceptions
Avoid Overly Large and High Designs: Prioritize using smaller loads and lower heights to control structural size and cost, while meeting usage needs.
Prioritize Independent Support: Unless there is sufficient reason and computational assurance, the independently supported scheme is a safer and more economical choice.
Fire Safety is a Lifeline: Never neglect fire protection design to save money, otherwise, it will lead to endless trouble.
Leave Professional Work to Professionals: A steel mezzanine is not simple “building blocks”; it concerns the safety of the entire building and human lives. Be sure to hire qualified professional teams from design through construction.
Through the above systematic planning and design, you can safely, compliantly, and efficiently build a steel structural mezzanine within your existing warehouse.
